Piston Set by JE - 83mm +.50mm Oversize Bore - 11.5: 1 CR - Stock Stroke - 92.8mm - VW 9A 2.0L 16V

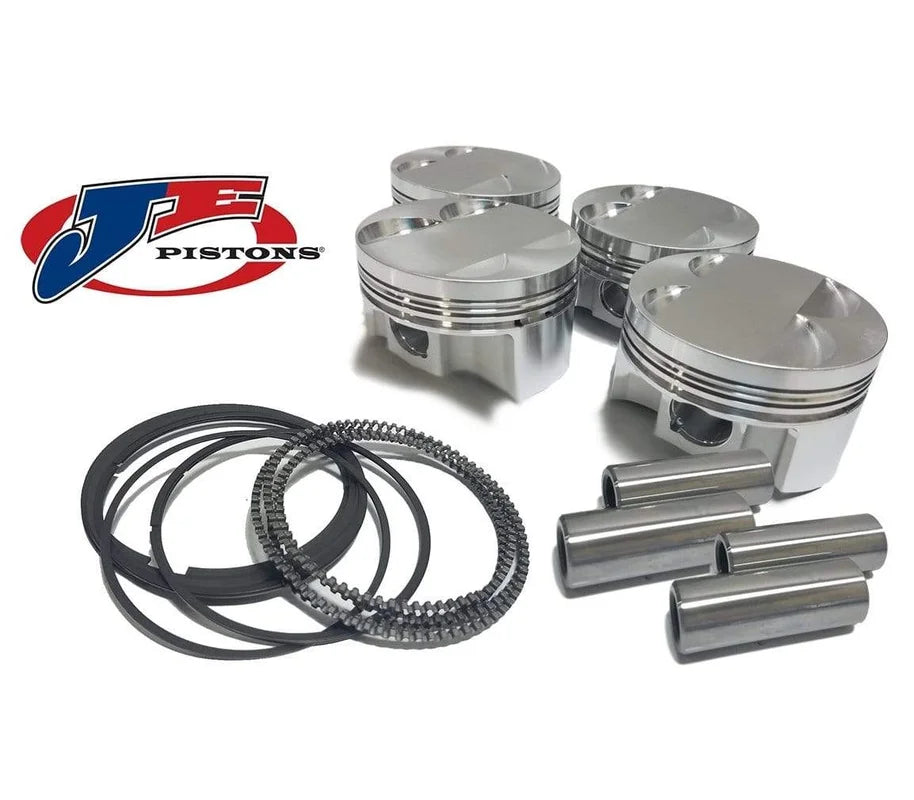

Description NOTE: Image shown not actual parts. JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports. Bore (in) 3.268 Bore (mm) 83. Top Compression Ring Thickness 0.0400 Second Compression Ring Thickness 0.0480 Oil Ring Thickness 0.111 Forging Type FSR Volume (cc) 4.10 Series JE Pistons Piston Head Type Dome Pin Diameter (IN) 0.787 Compression Height 1.165 Make AUDI / VOLKSWAGEN Wrist Pin Style – floating or press fit Floating Wall Type CHAMFERED Wall Thickness (IN) 0.180.

Ringset Part Number JG1001-3268 Ring Brand ProSeal Ringset Included Yes Retainer Thickness 0.050 Retainer Lock Style Wire Lock Retainer Lock Part Number 787-050-MW Retainer Diameter (IN) 0.787 Replacement Single Piston 301939S Replaced By 186233 Piston Pin Inside Diameter 0.427 Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED Piston Material 2618 Piston Pin Length (IN) 2.250 Piston Avg Wt 292 Pin Offset Yes Pin Brand JE Pistons Pin Part Number 787-2250-18-51C Pin Included Yes Pin Diameter (mm) 20.00 Oil Rail Support Included No Deck Clearance 0.000 Brand JE Pistons.
